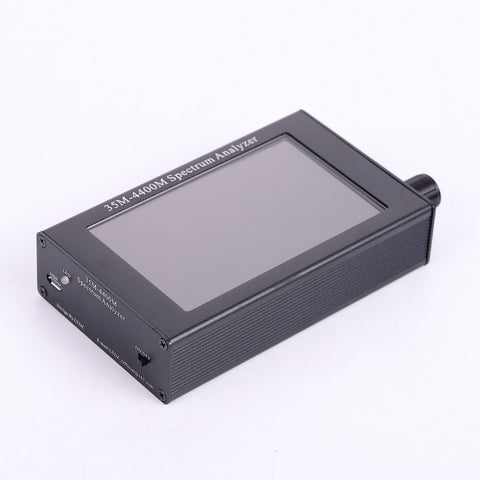

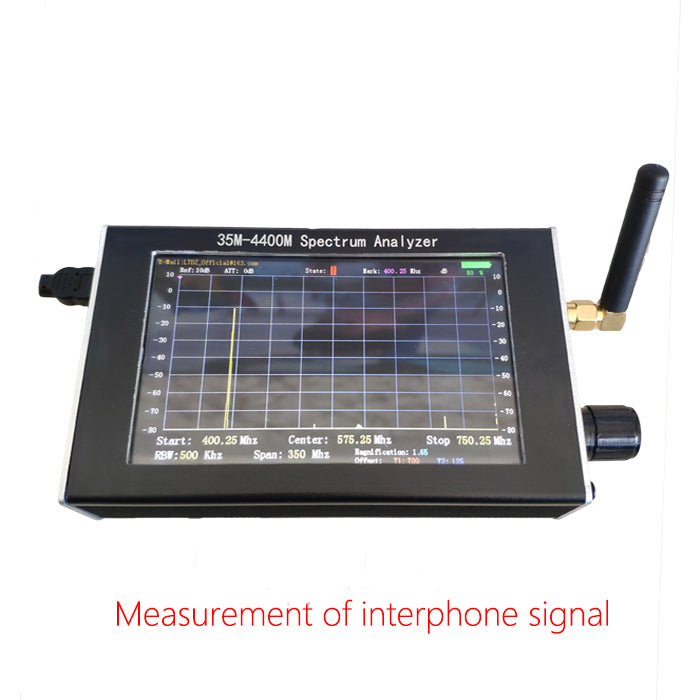

Spectrum Analyzer Handheld 35M-4400M Simple Measurement of Interphone Signal black

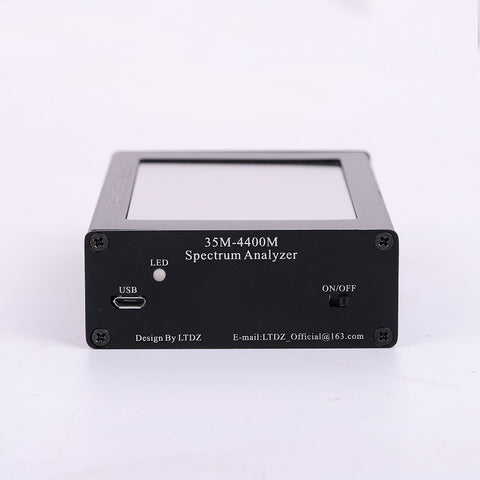

USB powered, full English display.

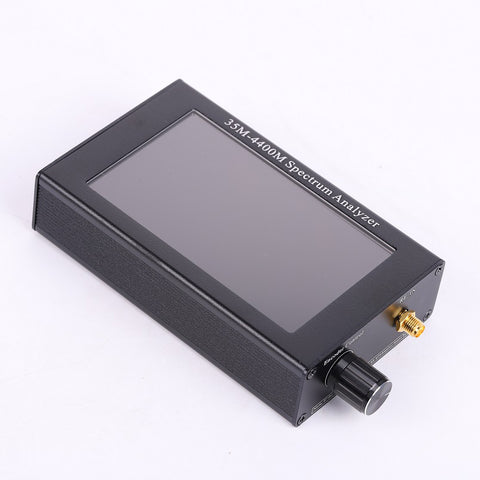

Full aluminum alloy housing + rotary encoder control.

Scope of use: walkie-talkie, toy remote control, 2.4Gwifi.

RBW: 10khz, 50khz, 100khz, 200khz, 500khz, a total of 5 gear positions can be adjusted.

Working mode: Superheterodyne scanning spectrum analyzer, single scan time is 800ms.

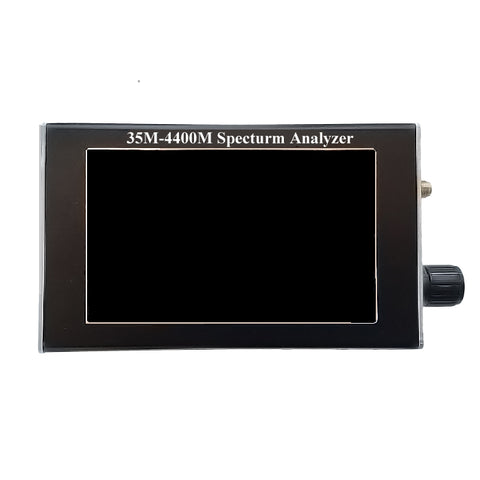

Adopt stm32f407 single-chip microcomputer (main frequency 168M) + 4.3-inch TFTLCD (480*800) color LCD screen.

Description:

Item type:tool

Size: 145mm*70mm*30mm

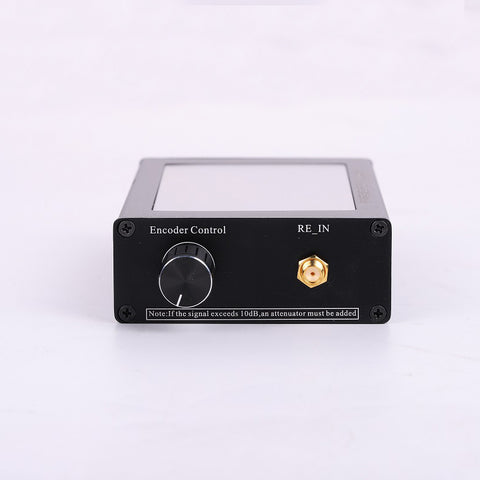

Maximum access signal: 10dB
Screen scan points: 700 points
Spectrum display range: 35M-4400Mhz; input impedance: 50 ohms
Scanning span: 7M (10Khz), 35M (50khz), 70M (100Khz), 140M (200Khz), 350M (500Khz)

dBm range: -80dB -10dB (support manual adjustment of calibration amplitude), the unit does not have an amplifier circuit inside, if you need to measure small signals, you need an external amplifier.

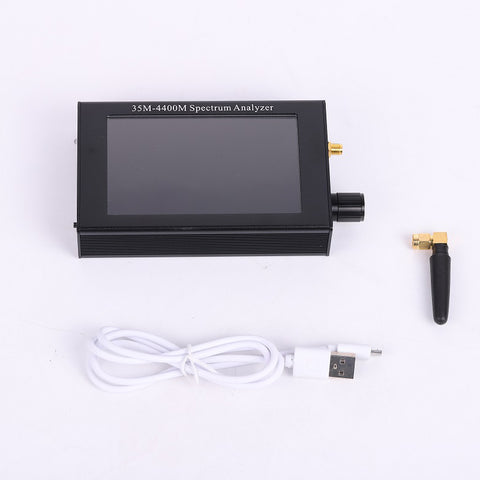

Packing list:

1 x Spectrum Analyzer
1 x USB Cable

Note:The colors deviation might differ due to different monitor settings, please kindly understand.
